Acknowledgements

• {list here sources of all reused/adapted ideas, code, documentation, and third-party libraries – include links to the original source as well}

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Architecture

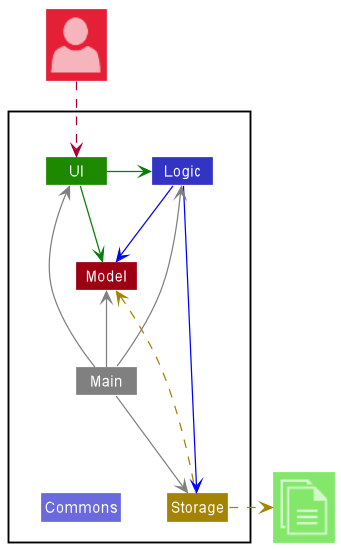

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

• At app launch: Initializes the components in the correct sequence, and connects them up with each other.
• At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

How the architecture components interact with each other

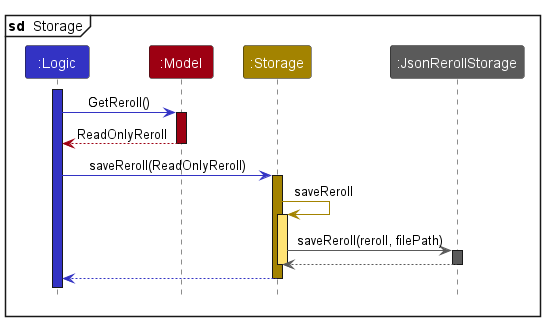

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command list.

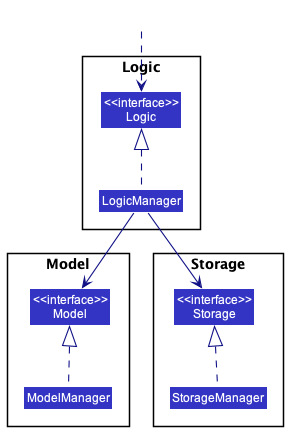

Each of the main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

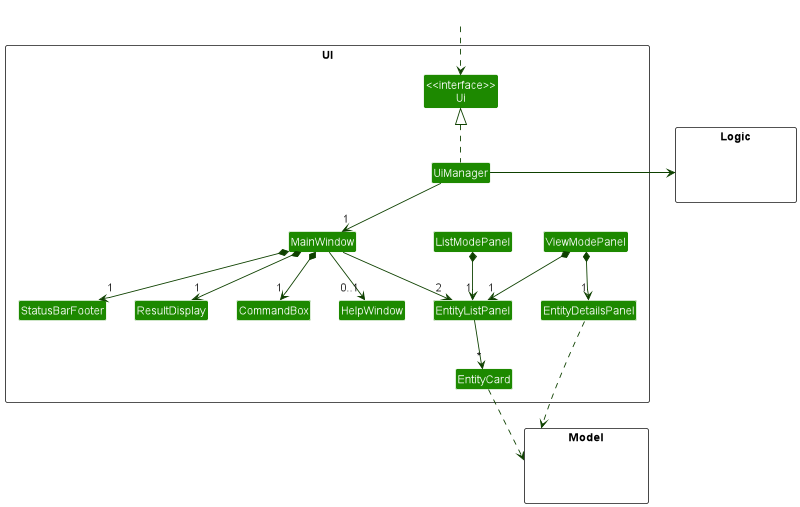

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, ViewModePanel , EditModePanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Entity objects residing in the Model.

The ListModePanel and ViewModePanel are UI elements that contain the necessary components to display the regular operating mode and the view / edit mode of Reroll respectively. Upon being triggered by the appropriate CommandResult, the UI switches modes through SwitchUiMode, unparenting the previous (ListModePanel by default), and parenting the alternative panel to MainWindow.

This is to create a seamless transition for the user and to free up screen real estate when not in view / edit mode. ViewModePanel contains a EntityDetailsPanel, which fetches entity data from Model after every command executed in edit mode to ensure that the user is kept up to date with changes.

Logic component

** API** : Logic.java

Here’s a (partial) class diagram of the Logic component:

How the Logic component works:

1. When Logic is called upon to execute a command, it uses the RerollParser or EditModeParser class to parse the user command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., MakeCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to add a entity).
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

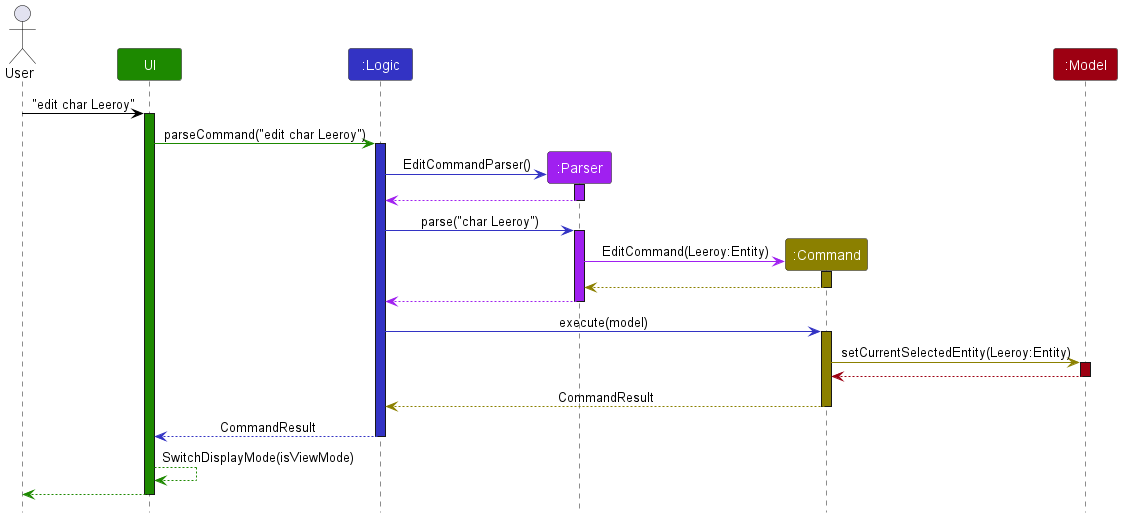

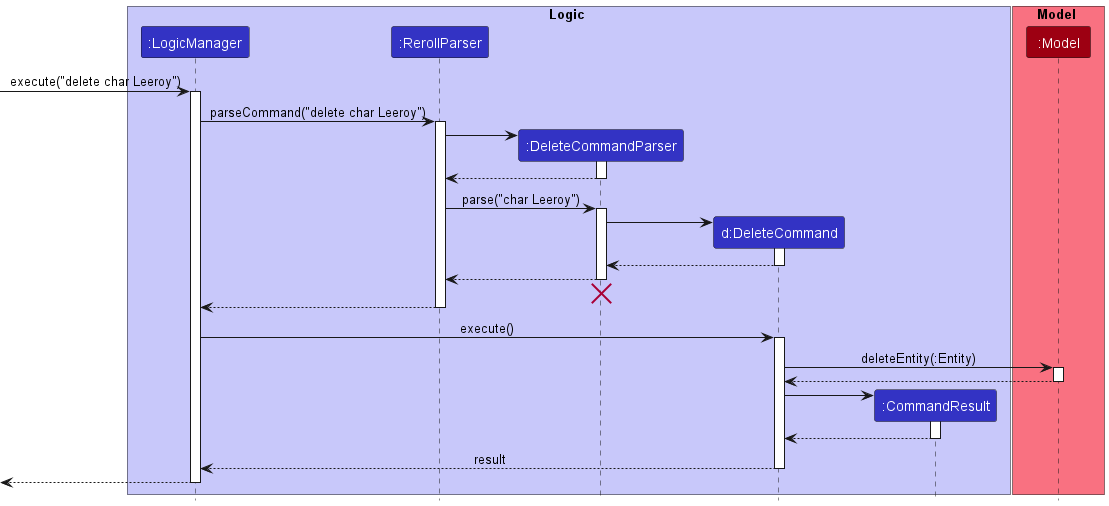

The Sequence Diagram below illustrates the interactions within the Logic component for the execute("delete 1") API call.

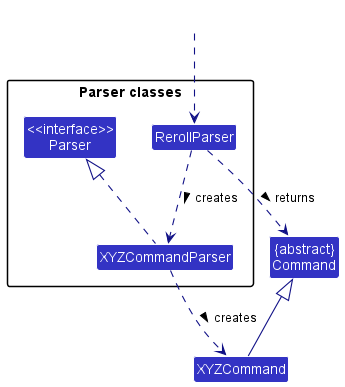

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the RerollParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., MakeCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., MakeCommand) which the RerollParser returns back as a Command object.
• All XYZCommandParser classes (e.g., MakeCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Logic keeps a boolean isInEditMode as runtime state that determines which of RerollParser and EditModeParser to use for incoming commands. EditModeParser differs in that it treats all user input as a EditValueCommand, which allows us to simplify the syntax for that command to simply <FIELD> <VALUE> as opposed to <COMMAND> <FIELD> <VALUE>. This is done to smoothen the experience for the end user, who might need to edit many fields in a short period of time.

Model component

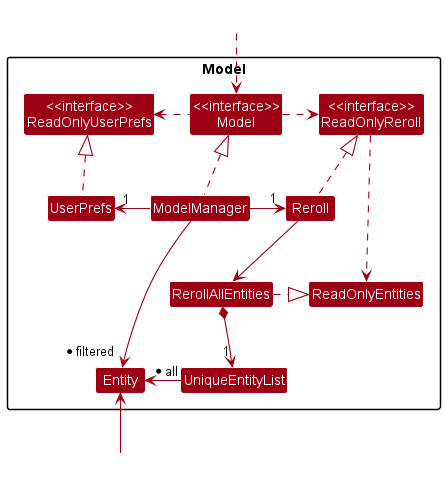

** API** : Model.java

The Model component,

• stores Reroll data i.e., all Entity objects (which are contained in a UniqueEntityList object).
• stores the currently ‘selected’ Entity objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Entity> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Note: RerollAllEntities, the class which stores all entities, is abstracted from Reroll, to support future functionality outside of entity list manipulation.

Storage component

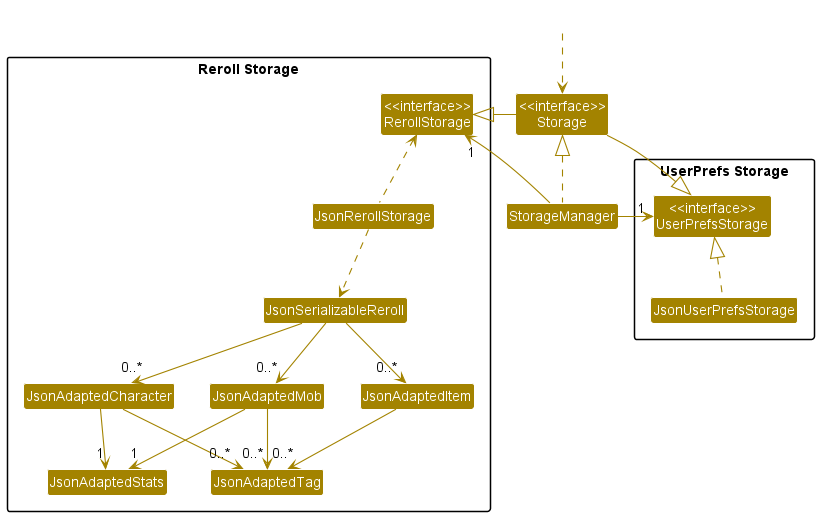

** API** : Storage.java

The Storage component,

• can save both Reroll data and user preference data in json format, and read them back into corresponding objects.
• inherits from both RerollStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

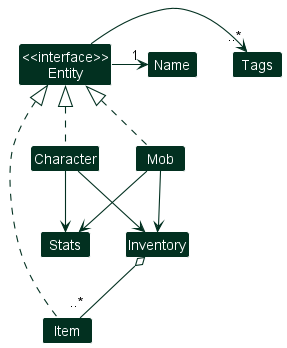

Entities

In order to facilitate operations and management of various aspects of user data, we have split entities into 3 classes implementing the Entity interface.

Each class holds their own the classification-specific fields while exposing the data for the Ui thru the interface method getFields.

Inventory

Characters and Mobs in Reroll contain an Inventory, which can contain references to up to any number of Items. Do note that these Item are added to the inventory as a immutable copy of the item when the inventory add command is used in edit mode.

Common classes

Classes used by multiple components are in the seedu.addressbook.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Make Command Parsing

Design considerations

In Reroll, there are 3 different entity classes (Character, Mob, Item) that users can keep track of. Each class has a set of unique fields to keep track of, resulting in a combined number of ~15 fields to keep track of. Thus, it is important to minimize mental load on the user during the creation of new entities.

Alternative approaches

1. Current design: Minimal make command with new syntax
   Sample command: make char King Arthur - makes a new Character that has the name King Arthur
   This approach only allows users to create an entity with a given name, all other fields can only be filled in using the edit command. This allows users to create entities quickly by eliminating the need to input prefixes.
2. Alternative: Reuse AB3 syntax, allow user to enter all fields at once
   Sample command: make char n/King Arthur str/10 dex/5 int/3 ... - makes a new Character with all the specified fields
   This approach allows users to create detailed entities with just one command. However, usage of prefixes such as n/ increases the mental load on the user to keep track of all the different prefixes, and increases their chance of making mistakes while inputting commands.

{more aspects and alternatives to be added}

[Proposed] Data archiving

{Explain here how the data archiving feature will be implemented}

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

Our key target user group is Table-Top Role Playing Game(TTRPG) players looking for a powerful entity management system for their gameplay.

The people in our user group who would benefit most from this product generally would have the following qualities:

• Need or struggle to store large repository of past ideas, including story, characters, monsters and items
• Type fast and prefer CLI
• Need inspiration for character, item and monster creation that a randomizer would help address

Value proposition:

Our product is a more expansive and well-organized system capable of managing TTRPG entities better than a traditional pen and paper format.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …​	I want to …​	So that I can…​
* * *	TTRPG facilitator	add entity	have entities
* * *	TTRPG facilitator	edit entity stats	update stats over time
* * *	TTRPG facilitator	delete entity	remove unwanted entities
* * *	TTRPG player	save my character sheets	locate details of entities without having to go through the entire list
* * *	TTRPG player	hide private contact details	minimize chance of someone else seeing them by accident
* *	new user	get more help on commands	learn how to use the app
* *	TTRPG facilitator	search for specific entities	get details of a desired entity
* *	TTRPG facilitator	sort and filter entity sheets by various tags and categories	have easy access to similar entities
* *	TTRPG facilitator	tag Creature and Character sheets	organize entities into groups for easier locating
* *	TTRPG facilitator	track the effects of rests(restoration actions) on my players	automate the process
* *	TTRPG facilitator	quickly refer to the instructions	easily settle disputes in my players
* *	TTRPG facilitator	design custom Scenario on the fly	have easy reference to relevant entities
* *	TTRPG player	access the character templates	have an idea of what is needed during character creation
* *	TTRPG player	quickly create a character sheet myself and send it to the RPG facilitator	allow the facilitator easy access to my character
* *	TTRPG Scenario Designer	save ideas for various entities when they occur to me	have a store of ideas and WIP concepts
*	new user	play around with sample data	experience the features of the app
*	TTRPG facilitator	import files created by others	make use of entities others have created
*	TTRPG facilitator	input my dice rolls	automatically calculate roll effects
*	TTRPG facilitator	use digital dice	do not rely on physical dice
*	TTRPG facilitator	randomize stats of entities	generate different entities automatically
*	TTRPG facilitator	change the instructions sheet	easily implement house rules
*	TTRPG facilitator	organise DnD games digitally	conduct a session without a physical venue
*	TTRPG player	import my character sheet from the TTRPG facilitator	have easy access to a usable character
*	TTRPG player	read up on the character sheets my RPG facilitator has made in my own timev	refresh my memory easily
*	TTRPG player	refresh my knowledge of game rules by reading the instructions	play without an external copy of the rules
*	TTRPG player	view logs of the entities	keep up with history
*	TTRPG player	catch up on the story so far by referring to the stored storyline recaps	keep up to date with the story
*	expert user	enter short-form CLI commands	so that I am more efficient
*	experienced designer	export to .txt files	so that others can use my creations

The user stories are not limited to those in this list. More can be added in the future as new features are developed.

Use cases

(For all use cases below, the System is the Reroll and the Actor is the user, unless specified otherwise)

Use case: Edit an entity

MSS

1. User request to enter edit mode for specified entity
2. Reroll enters edit mode
3. User requests to replace specified field with new value

4. Reroll edits the specified entity and display it

   Steps 3-4 are repeated for as many fields as required.

5. User exits edit mode

   Use case ends

Extensions

• 2a. The specifications of the entity are invalid

  • 2a1. Reroll shows an error message.

    Use case resumes at step 1

• 3a. The given fields are invalid

  • 3a.1 Reroll shows an error message and exits edit mode

    Use case resumes at step 1

Use case: Add item to inventory of entity

MSS

1. User request to enter edit mode for specified entity
2. Reroll enters edit mode
3. User request to add specified item

4. Reroll adds specified item to entity’s inventory

   Use case ends

Extensions

• 2a. The specifications of the entity are invalid

  • 2a1. Reroll shows an error message.

    Use case resumes at step 1

• 3a. Item does not exist in Reroll

  • 3a1. Reroll shows an error message and exits edit mode

    Use case resumes at step 1

{More to be added}

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 500 entities without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. The application is not required to be compatible with any existing tracking applications.
5. The application should be usable by new players not familiar with RPG trackers.

Glossary

• Mainstream OS: Windows, Linux, Unix, OS-X
• Entities: General term for characters, mobs and items
• Characters: Characters, typically humans, that are controlled by players participating in a table-top RPG game
• Mobs: Non-player characters (NPCS) that are typically monsters
• Items: Weapons, armor or tools that players can keep and use

---

Appendix: Planned Enhancements

Future enhancements are planned to improve Reroll.

1. Currently, fields such as weight, cost and challenge rating accepts negative values. Parser will be updated to detect such invalid values and print an error message.
2. More case-insensitive commands will be implemented. Currently [CLASSIFICATION] must be in lowercase to work, causing confusion among the testers.
3. Entities with very long name does not wrap in the GUI. Changes to GUI to remedy this is expected.
4. The current error message for a failed delete command is too general. We plan to tweak this to mention whether it was an incorrect format, invalid Classification or Name that caused the failure.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample entities. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

3. { more test cases …​ }

Deleting a entity

1. Deleting a entity while all entities are being shown

   1. Prerequisites: List all entities using the list command. Multiple entities in the list.

   2. Test case: delete char Leeroy
      Expected: Character named Leeroy is deleted from the list. Details of the deleted entity shown in the status message. Timestamp in the status bar is updated.

   3. Test case: delete char
      Expected: No entity is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delete, delete garbage


      Expected: Similar to previous.

2. { more test cases …​ }

Saving data

1. Dealing with missing/corrupted data files

   1. {explain how to simulate a missing/corrupted file, and the expected behavior}

2. { more test cases …​ }
